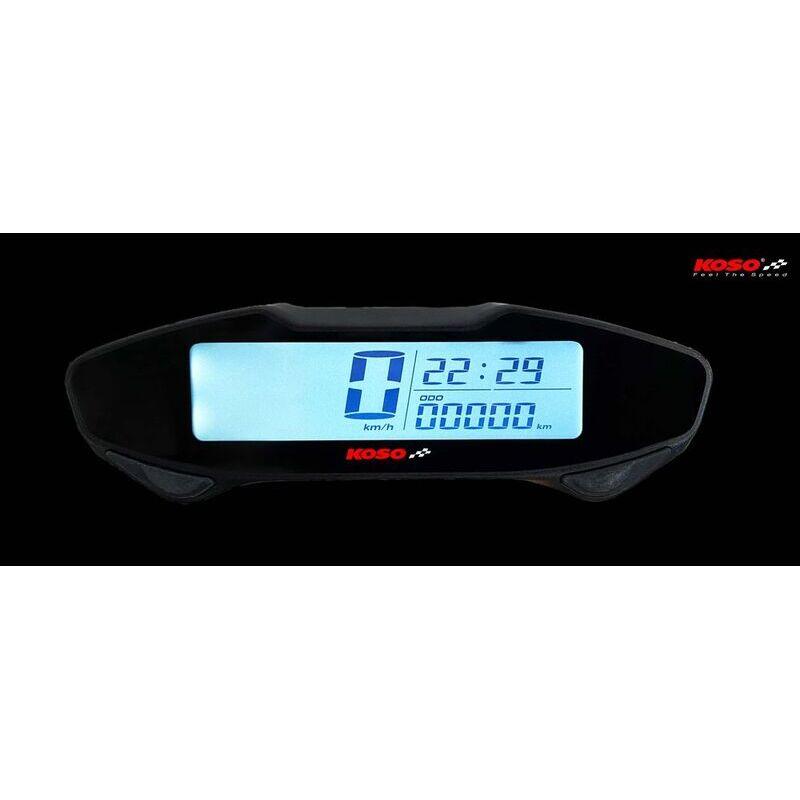

Speedometer DB EX-03

Compact, lightweight, multifunctional - the speedometer DB EX-03 serves as a speed indicator, odometer, hour meter, clock, stopwatch, voltmeter, tracks trips, maintenance mileage, and records values such as maximum speed, maximum voltage, and average speed.
Equipped with indicator lights for engine oil, fuel level, water temperature, high beam, turn signals, and engine warning light, the speedometer DB EX-03, weighing 70 g, impresses with its dimensions of just 120 mm x 38.8 mm x 34.2 mm.

Speedometer
Display range: 0 ~ 360 km/h (0 ~225 mph) Display unit: km/h alternatively mph
Odometer
Display range: 0 ~ 99,999 km (miles), resets automatically after 99,999 km (miles)

Daily counter A, B
Display unit: 1 km (mile) Display range: 0.0 ~ 9,999.9 km (miles),
resets automatically after 9,999.9 km (miles)

Hour Meter
Display unit: 0.1 km (mile)
Display range: 0 ~ 99,999 hours
Display unit: 1 hour

Hour counter A/B
Display range: 0~9,999.9 hours, resets automatically after 9,999.9 hours
Display unit: 0.1 hour

Clock
Display range: 00:00 ~ 23:59

Voltmeter
Display range: 8.0 ~ 18.0 V DC
Display unit: 0.1 V DC

Stopwatch
Adjustment range: 0:00:00 ~ 9:59:99
Adjustment unit: 0.01 sec.

Maintenance mileage counter reading
Adjustment range: 300 ~ 5,000 km, can be cleared manually.
Adjustment unit: 1 km

MAX. Recording
Average speed: 0 to 360 km/h
(0 to 225 mph)
Max speed: 0 to 360 km/h (0 to 225 mph)
Max voltage: 8.0 ~ 18.0 V DC

Internal battery level
Display range: 4 levels

Operating temperature
-10 ~ +60°C

Device size
120.0 x 38.8 x 34.2 mm

Specifications
JIS D 0203 S2

Weight of the counter
Approximately 70 g

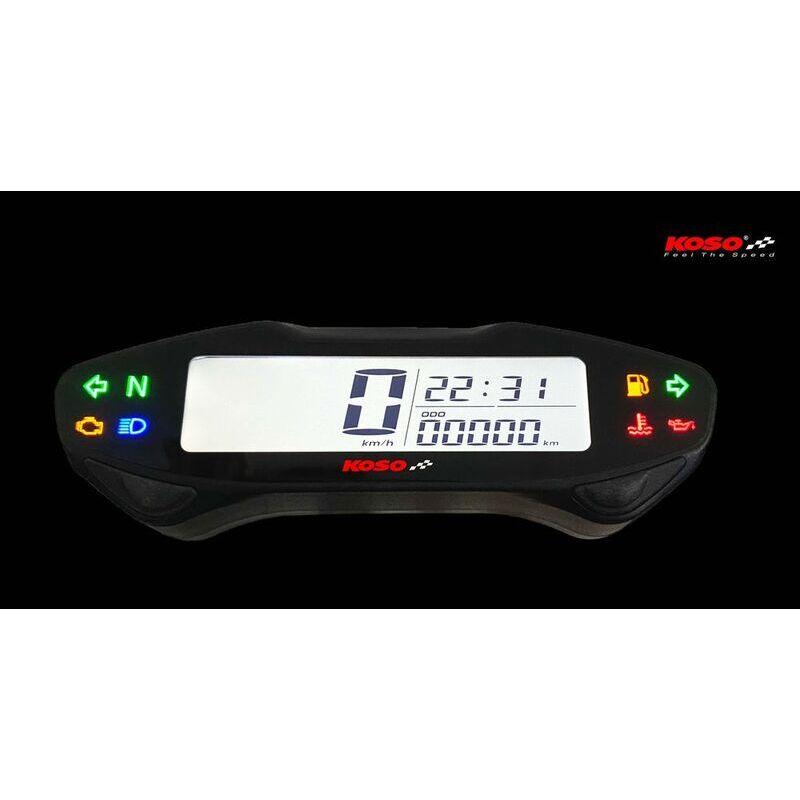

Indicator light
Right indicator (green)
Engine oil warning light (red)
Low fuel level warning light (amber) Water temperature warning light (red)
Neutral indicator (green)
High beam (blue)
Left indicator (green)
Engine warning light (yellow)
